Installation

The POSTFIX™ MAIN BRACKET is available in 4 sizes to suit SLOTTED CONCRETE POSTS and 1 Size to suit most SOLID POSTS. Check here for details of each size, how to attach brackets to posts, for easy ordering each size is given a TYPE NUMBER.

PLEASE NOTE THAT THE SOLID POST VERSION IS CURRENTLY OUT OF PRODUCTION.

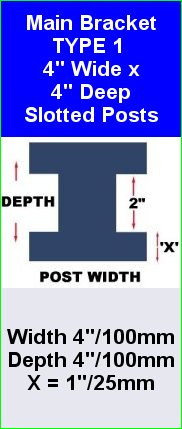

Top view 1

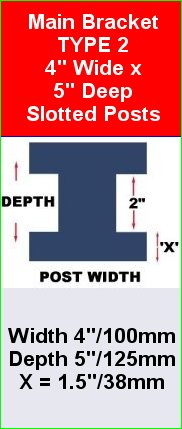

Top view 2

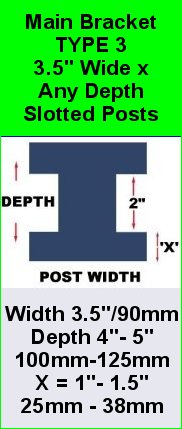

Top view 3

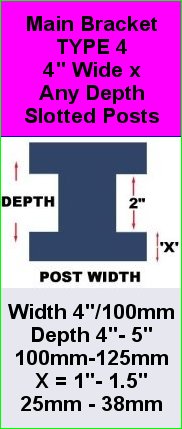

Top view 4

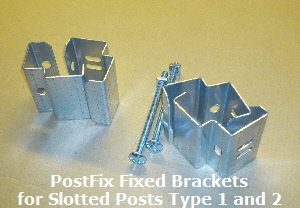

Type 1 Brackets for 4” wide x 4” deep slotted posts in SILVER GALVANISED finish with fixing bolt.

Type 2 Brackets for 4” wide x 5” deep slotted posts in SILVER GALVANISED finish with fixing bolt.

Type 3 Brackets for 3.5” wide x up to 5” deep slotted posts in SILVER GALVANISED finish with fixing bolt.

Type 4 Brackets for 4” wide x up to 5” deep slotted posts in SILVER GALVANISED finish with fixing bolt.

FOR COMMON 4” x 4” POSTS.

WILL NOT FIT DOME FRONTED POSTS.

FIXED SIZE BRACKET FOR 5” DEEP POSTS.

WILL NOT FIT DOME FRONTED POSTS.

UNIVERSAL BRACKET, user folds the lip that tucks inside groove of post with pliers ensuring tight fit on varying depth posts, see picture to right. Ideal for use with ‘lite and lightweight concrete’ posts.

Will fit 3” Wide posts.

UNIVERSAL BRACKET, user folds the lip that tucks inside groove of post with pliers ensuring tight fit on varying depth posts, see picture to right.

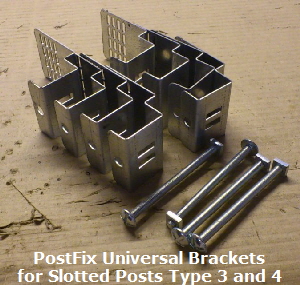

			PostFix Universal Brackets overcome the problem of varying depth posts, or where standard size posts are poorly manufactured.

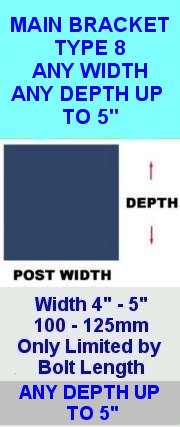

Top view 8b

CORNER POSTS and END POSTS WITH ONE SLOT

Use combinations of our Type 1 to 4 main brackets with Type 8 brackets to fix to corner posts and one slot posts!

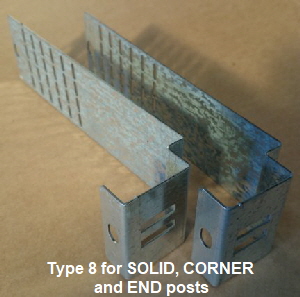

Solid Post Brackets Type 8 in SILVER GALVANISED finish with 2 - 100mm fixing bolts supplied.

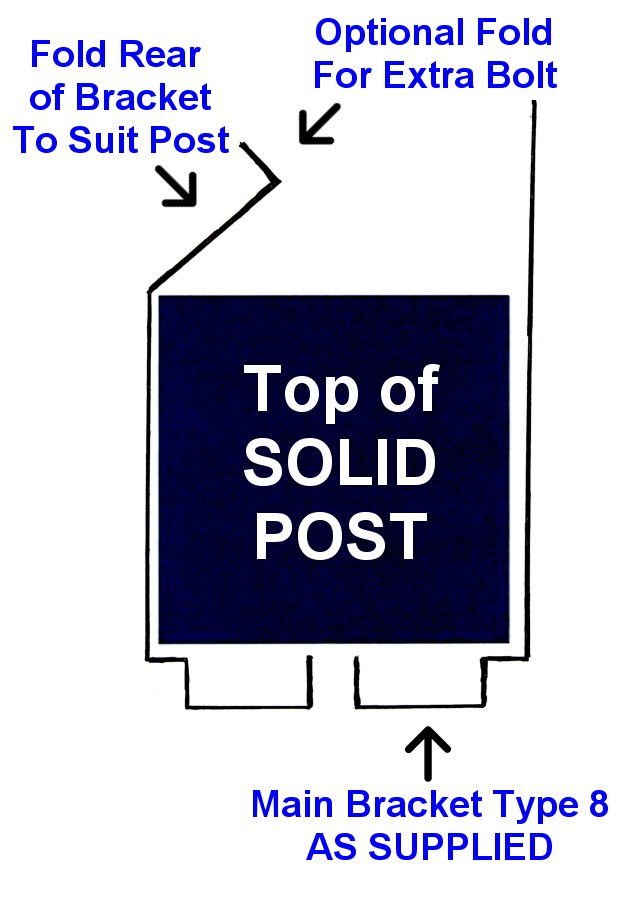

Bracket slides easily between solid post and fence panel and secured by bending last fold with pliers at rear of post, see top view of post diagram.

Width of post not important and is limited only by the length of fixing bolts, any depth up to 125mm.

Compatibility with POSTFIX Ancillary Brackets is not guaranteed due to the potential width of the bracket.
